Types
| Print Head | 32mm, 300DPI |
| Print Area | Intermittent-32mm*60mm |
| Continuous-32mm*100mm | |
| Ribbon Size | W-33MM, L-600(Max.) |
| Print Frequency | Intermittent:up to 450PPM |
| Continuous:up to 40meters | |
| Power | AC110~220V, 50/60Hz, 150W |
| Environmental Operating Temperature | 0~40°C |
| Relative Humidity | 10%~95% ( no condensing) |
| Air Supply | 6bar/90PSI(MAX) dry uncontaminated |
| Weight | Intermittent-print head:8.5kg, control box:2.0kg |
| Dimension | Print Head 188mm*190mm*180mm(L*W*H) |
| Control Box 175mm*210mm*110mm(L*W*H) |
Features

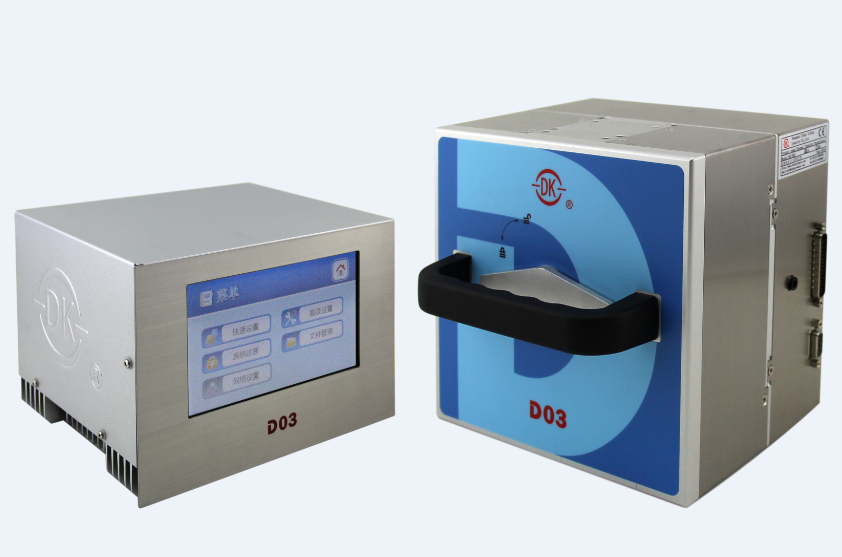

D03 Thermal Transfer Overprinter cbe installed on Intermittent& Continuous package machines & Labeling machine to print barcode, QR code, Logo, Images, Variable data, Tables, Nutrition List, Serial Numbers etc. on package films in all kinds of print fonts.
| Print Head | 53mm, 300DPI |
| Print Area | Intermittent-53mm*80mm |
| Continuous-53mm*150mm | |
| Ribbon Size | W-55MM, L-650M(Max.) |
| Print Frequency | Intermittent:up to 450PPM |
| Continuous:up to 200PPM | |
| Power | AC110~220V, 50/60Hz, Intermittent: 100W, Continuous:150W |
| Environmental Operating Temperature | 0~40°C |
| Relative Humidity | 10%~95% ( no condensing) |
| Air Supply | 6bar/90PSI(MAX) dry uncontaminated |
| Weight | print head:8.5kg, control box:2.0kg |
| Dimension | Print Head 210mm*210mm*185mm(L*W*H) |
| Control Box 175mm*235mm*110mm(L*W*H) |
Features

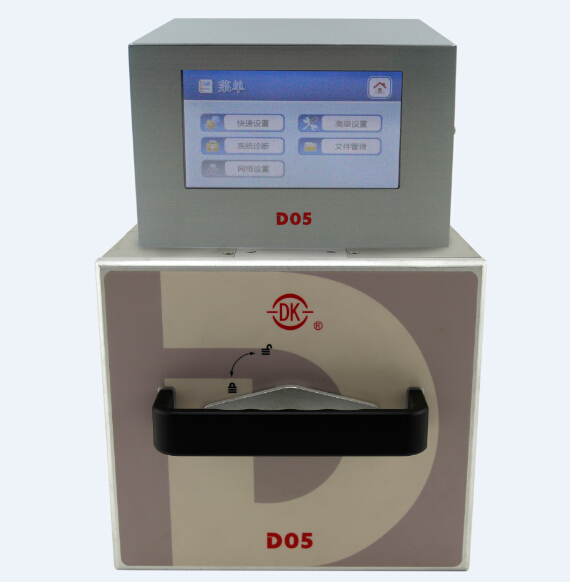

D05 Thermal Transfer Overprinter can be installed on Intermittent& Continuous package machines & Labeling machine to print barcode, QR code, Logo, Images, Variable data, Tables, Nutrition List, Serial Numbers etc. on package films in all kinds of print fonts.
